Описание

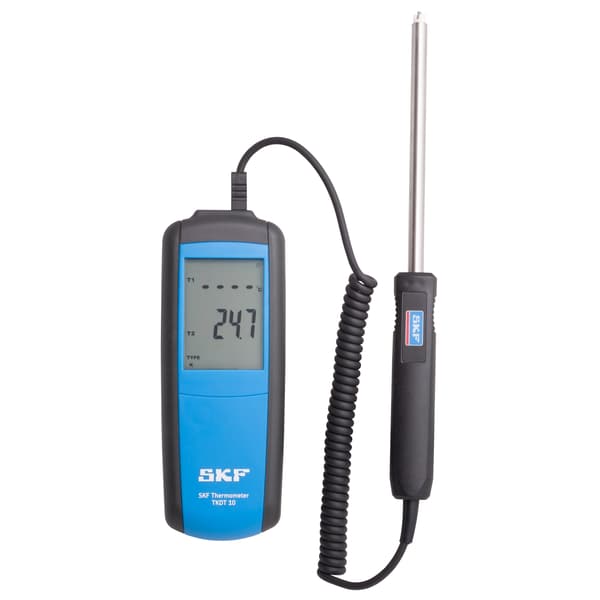

The SKF Thermometer TKDT 10 is suitable for a wide range of applications. It is a pocket sized, user friendly instrument with a wide temperature measurement range and it has the option to connect up to two temperature probes for simultaneous measurements. The TKDT 10 is supplied with a temperature probe included.
Характеристики
Размеры кейса (д x в x ш)
530 x 85 x 180 mm
Цвет
Синий;Тёмно-серый
Подключение
2x Type-K connectors
Комплектация
1x SKF Thermometer TKDT 10;1x Contact probe TMDT 2-30;3x AAA batteries;1x printed QR card
Дисплей
LCD with dual temperature display with switchable backlight
Класс защиты (IP)
IP 40
Материал корпуса
Plastic; thermoplastic rubber
Размеры прибора
160 x 63 x 30 mm
Вес прибора
200 g
Режимы измерений
°C, °F, K
Диапазон рабочих температур
0–50 °C
Probe response time
2.3 s
Probe

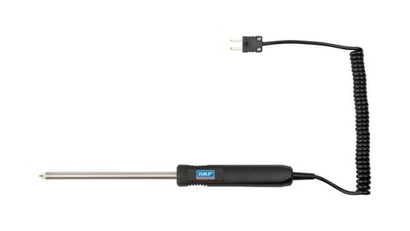

Supplied with K type probe, TMDT 2-30 included (max. 900 °C);Other probes optional
Рекомендуемые области применения
Used in applications where an acurate temperature measurement on non moving hard surfaces is required E.g. bearings, bearing housings, pumps, compressors and other machines. Also suited for use with SKF TIH induction heaters for measuring the difference between the bearing inner and outer ring temperatures during bearing heating.
Разрешение
0.1 °C/°F (below 999.9);1 °C/°F (above 1000)
Относительная влажность
10 to 90% RH non-condensing
Рекомендуемая температура хранения
-10–60 °C
Особенности
Min, max, average, differential, dual temperature, hold, timer
Temperature range using probe
-200–1372 °C
Автоматическое отключение
20 min, off
Аккумуляторная батарея
3x AAA (LR03) Alkaline (incl.)
Время работы от батареи
18 hours typical use (backlight on) h
Бренд
SKF
