Описание

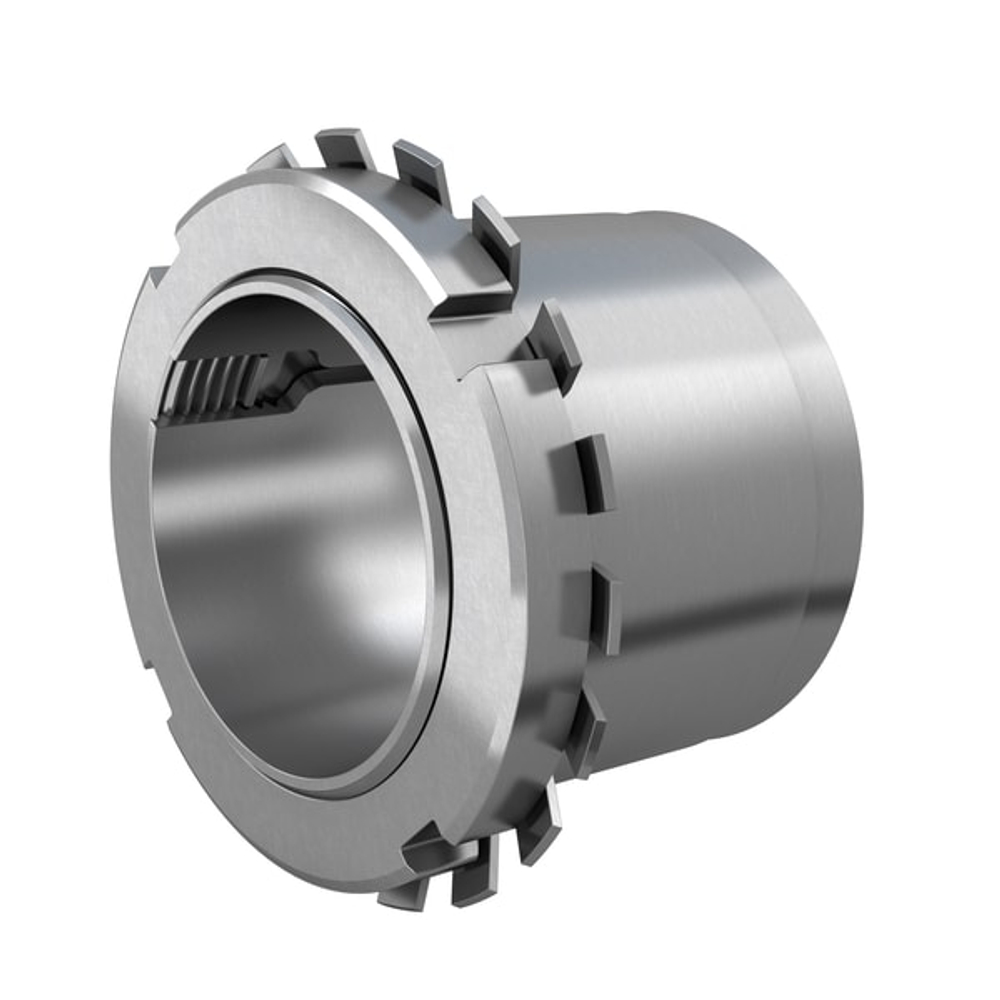

Bushings and hubs are available in many variants, offering specific benefits in power transmission applications ranging from automotive to papermaking. FX90 keyless bushings are designed to attach components to shafts using a 360-degree interference fit. With no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the hexagonal nut.
Характеристики
Category
Keyless bushings
Наружный диаметр (D)
25 mm
Диаметр отверстия (d)
14 mm
Общая ширина (T)
30 mm
Количество зажимных винтов
0
Ширина контакта (L₁)
20 mm
Номер втулки
FX90
Гайка зажимных винтов
KM4
Бренд
SKF
