Описание

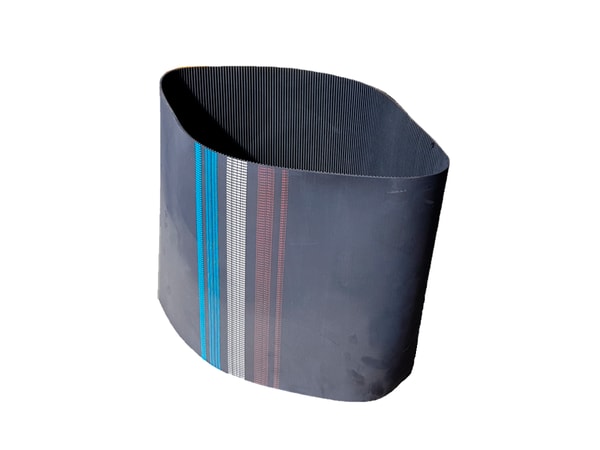

Belts provide a very efficient and cost-effective method for transmitting power from prime movers to driven machines. High torque drive (HTD) timing belts have teeth that interlock with the corresponding grooves on the pulleys to ensure a constant speed ratio. The low stretch glass fibre cords guarantee excellent dimensional stability. The oil and heat resistant neoprene rubber cushion provides high shear resistance. The belt sleeve can be cut to the desired belt width.
Характеристики
Количество зубьев
225
Сечение
8M
Длина шага (Lₚ)
1800 mm
Высота зуба (h₁)
5.6 mm
Глубина зуба (h₂)
3.4 mm
Шаг зуба (p)
8 mm
Втулка
Да
Бренд
SKF
